PEEK990G
PRES
| material | model | OD(mm) | ID(mm) | length(mm) | |
|---|---|---|---|---|---|

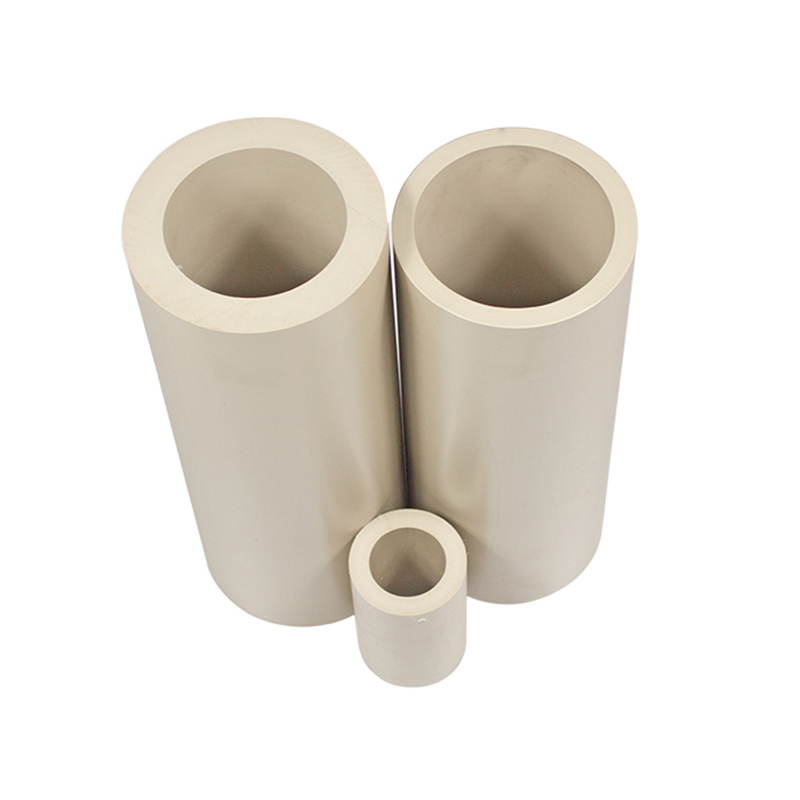

 | PEEK resin-unfilled PEEK | PEEK–990G | 1~350 | 1~350 | 1000 |
| Glass fiber reinforced PEEK | PEEK–990GF30 | 10~300 | 10~300 | 1000 | |

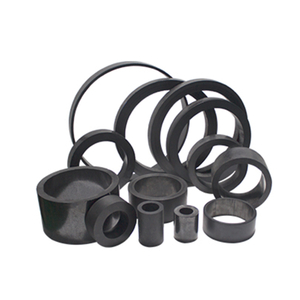

| Carbon fiber reinforced PEEK | PEEK–990CA30 | 10~300 | 10~300 | 1000 |
 | Multiple PEEK profile extrusion production linesIntroducing advanced continuous extrusion production lines for profiles, improving the production efficiency of PEEK profiles in China, reducing costs, and having a large inventory of nearly a hundred specifications of PEEK pipe extrusion molds available . |
PEEK Profile warehousePEEK profiles are sold directly by manufacturers, with complete specifications and a large inventory available |  |

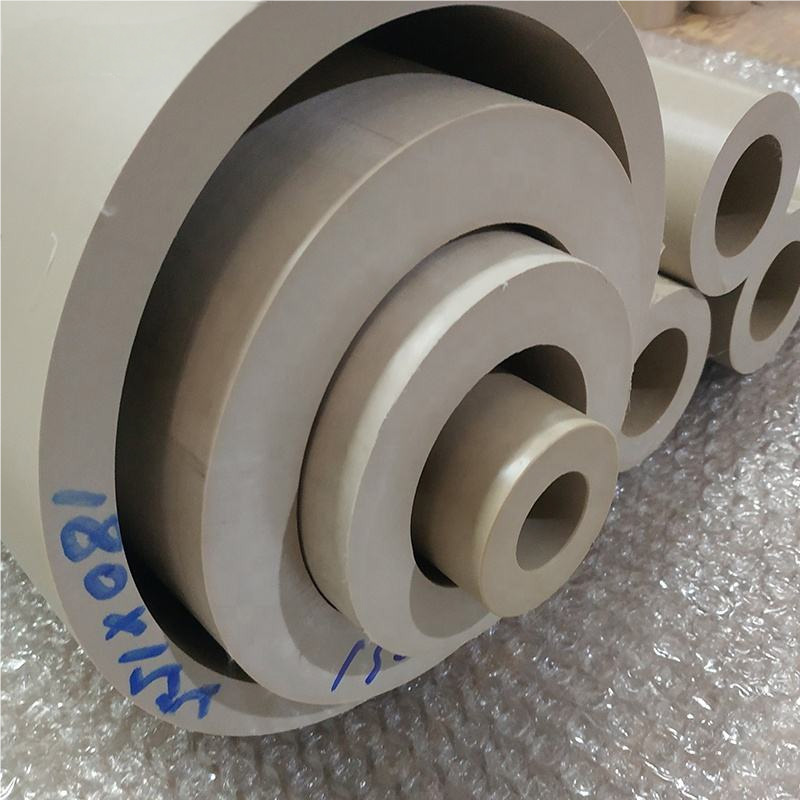

| Support PEEK tube cuttingThe PEEK tube produced by continuous extrusion process solves the technical problems of limited product height in compression molding process and easy internal shrinkage holes in injection molding process, while reducing material loss and machining costs. It can be customized for non-standard cutting according to customer requirements |
| No. | size (mm) | inventory | longth (m) | weight (KG) |
|---|---|---|---|---|
| 1 | Φ60*Φ40 | available | 1 | 2.38 |
| 2 | Φ65*Φ40 | available | 1 | 3.01 |
| 3 | Φ65*Φ50 | available | 1 | 2.15 |
| 4 | Φ70*Φ50 | available | 1 | 2.78 |
| 5 | Φ75*Φ56 | available | 1 | 2.88 |
| 6 | Φ80*Φ50 | available | 1 | 4.29 |
| 7 | Φ80*Φ60 | available | 1 | 3.18 |
| 8 | Φ86*Φ66 | available | 1 | 3.57 |
| 9 | Φ94*Φ71 | available | 1 | 4.19 |
| 10 | Φ100*Φ50 | available | 1 | 7.93 |
| 11 | Φ100*Φ77 | available | 1 | 4.28 |
| 12 | Φ100*Φ80 | available | 1 | 4.32 |
| 13 | Φ112*Φ83 | available | 1 | 6.48 |
| 14 | Φ116*Φ93 | available | 1 | 5.25 |
| 15 | Φ122*Φ101 | available | 1 | 5.33 |
| 16 | Φ124*Φ101 | available | 1 | 5.81 |
| 17 | Φ125*Φ105 | available | 1 | 4.85 |
| 18 | Φ134*Φ106 | available | 1 | 7.37 |
| 19 | Φ149*Φ125 | available | 1 | 7.10 |
| 20 | Φ153*Φ118 | available | 1 | 10.60 |
| 21 | Φ153*Φ126 | available | 1 | 8.86 |
| 22 | Φ164*Φ118 | available | 1 | 13.97 |
| 23 | Φ168*Φ80 | available | 1 | 22.87 |
| 24 | Φ170*Φ146 | available | 1 | 8.73 |
| 25 | Φ175*Φ152 | available | 1 | 7.94 |
| 26 | Φ183*Φ159 | available | 1 | 9.25 |
| 27 | Φ200*Φ145 | available | 1 | 20.21 |
| 28 | Φ200*Φ155 | available | 1 | 17.78 |
| 29 | Φ220*Φ180 | available | 1 | 18.29 |
| 30 | Φ234*Φ208 | available | 1 | 12.82 |
| 31 | Φ257*Φ192 | available | 1 | 31.05 |
| 32 | Φ258*Φ219 | available | 0.62 | 12.40 |
| 33 | Φ282*Φ259 | available | 1 | 14.82 |
| 34 | Φ296*Φ270 | available | 1 | 17.40 |
| 35 | Φ336*Φ310 | available | 1 | 19.67 |
| 36 | Φ363*Φ320 | available | 1 | 32.05 |
| 37 | Φ372*Φ343 | available | 1 | 24.75 |
| 38 | Φ416*Φ360 | available | 1 | 48.30 |
| 39 | Φ430*Φ398 | available | 1 | 30.52 |
| 40 | Φ482*Φ445 | available | 1 | 36.00 |
| 41 | Φ490*Φ430 | available | 1 | 60.30 |
| 42 | Φ532*Φ497 | available | 1 | 39.00 |
| 43 | Φ630*Φ590 | available | 1 | 54.10 |
| 44 | FE20Φ101*Φ78 | available | 1 | 5.58 |
| 45 | FE20Φ125*Φ100 | available | 1 | 6.50 |
| 46 | FE20Φ183*Φ159 | available | 1 | 10.03 |
| 47 | FE20HΦ183*Φ159 | available | 1 | 10.03 |
| 48 | FE20Φ234*Φ208 | available | 1 | 13.90 |
| 49 | FE20HΦ234*Φ208 | available | 1 | 13.90 |
| 50 | FE20Φ282*Φ259 | available | 1 | 16.07 |
| 51 | FE20HΦ282*Φ259 | available | 1 | 16.07 |
| 52 | FE20Φ336*Φ310 | available | 1 | 21.33 |
| 53 | FE20HΦ336*Φ310 | available | 1 | 21.33 |
| 54 | FE20HΦ372*Φ343 | available | 1 | 26.84 |
