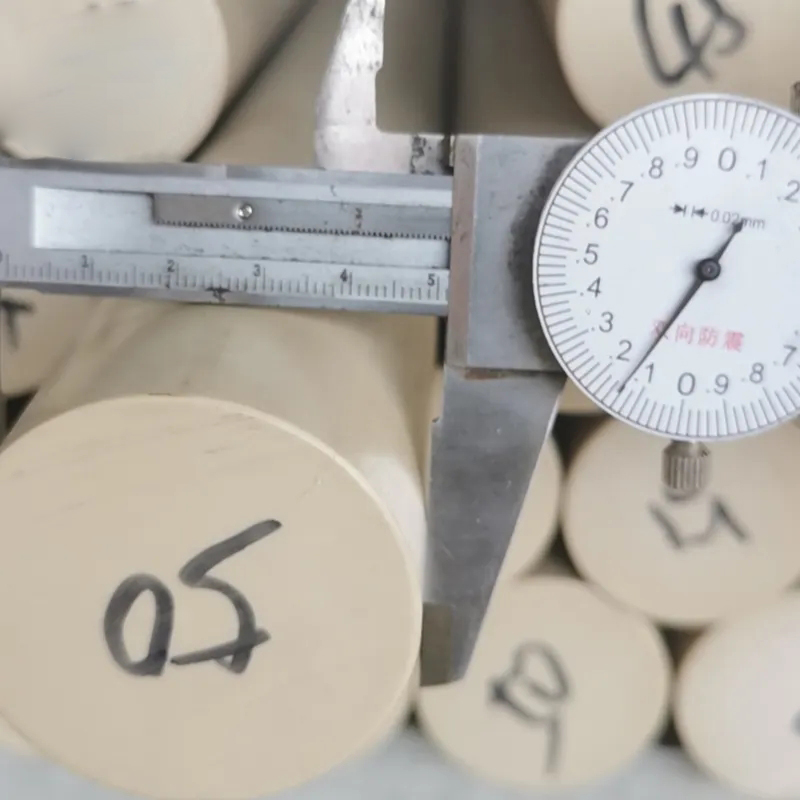

50mm PEEK Rod

PEEK rods Widely used in medical, mechanical, aerospace, energy and chemical fields.
Combining toughness and rigidity, excellent impact resistance, and fatigue resistance comparable to alloy materials; Tensile strength 100MPa, elongation at break 45%.

High modulus (4100MPa) and dimensional stability, with a coefficient of linear expansion close to that of aluminum metal, suitable for precision component manufacturing.

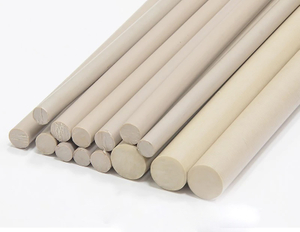

The degree of freedom in the size design of PEEK resin rods is higher than that of Glass fiber reinforced PEEK rods and carbon fiber reinforced PEEK rods, and can produce smaller or larger rods.

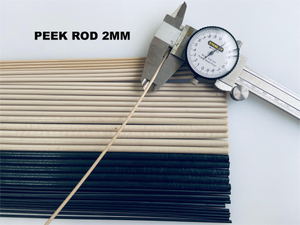

We can provide PEEK rods ranging from 2mm to 200mm


Availability:



Inquire

Model:
PEEK-990G
Brand:
PRES

Product Description

Overview

PEEK material, as a high-temperature resistant plastic, also has excellent mechanical properties and good dimensional stability.

Therefore, PEEK rods are suitable for machining and producing precision components.

Product Description

high temperature resistance

Long term use temperature up to 260 ℃ (UL certification), short-term tolerance up to 300 ℃;.

The glass transition temperature is 162 ℃, the melting point is 343 ℃, and it can still maintain high strength at high temperatures (bending strength of 24MPa at 200 ℃, 15-19MPa at 260 ℃).

Chemical Resistance

Only concentrated sulfuric acid can cause significant damage to it, with corrosion resistance similar to nickel steel, suitable for strong acid, strong alkali, and organic solvent environments.

Friction and self-lubricating properties

Low friction coefficient (0.34), excellent wear resistance, can work under oil-free lubrication conditions, suitable for friction components such as bearings and gears.

Other Performance

Flame retardancy: UL94 V-0 standard can be achieved without the need for additives, low smoke and non-toxic.

Electrical insulation: dielectric strength of 190kV/mm, low dielectric loss at high frequencies, suitable for insulation components in high temperature and high voltage environments.

Resistance to hydrolysis and radiation: It has stable performance in high temperature and high pressure water and can withstand high doses of gamma ray radiation.

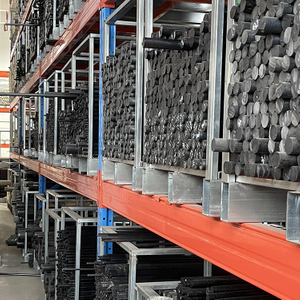

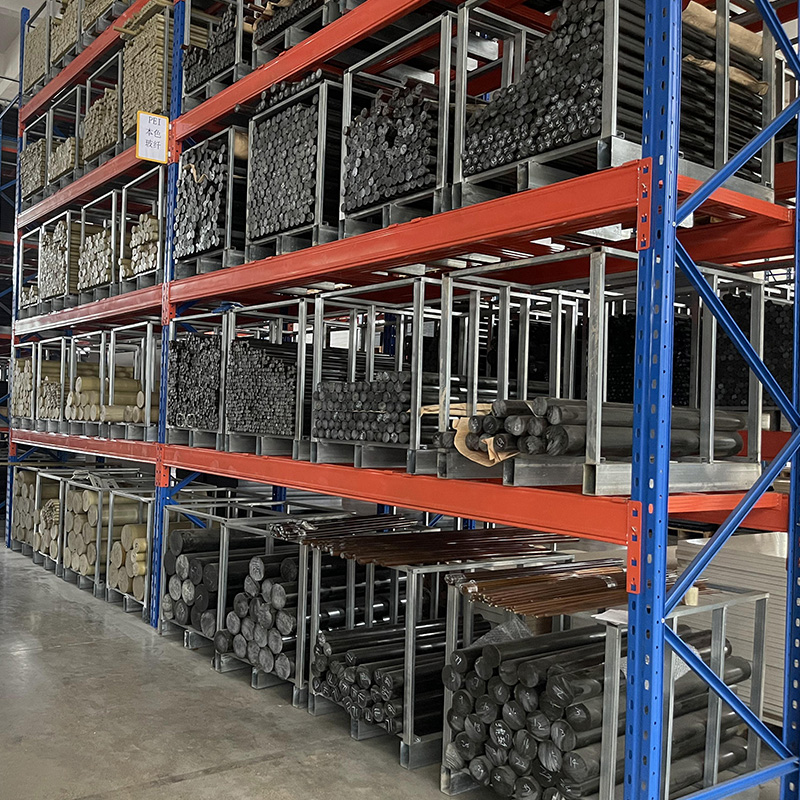

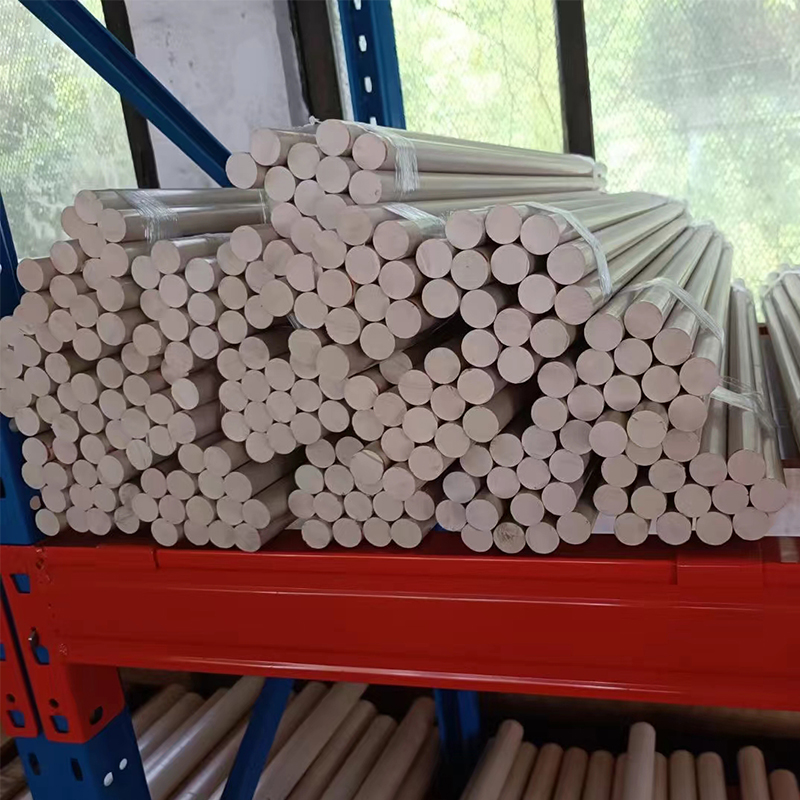

High temperature resistant plastic rod inventory

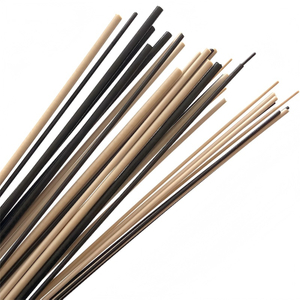

Choose the suitable diameter

The diameter of PEEK resin rod is 2-200mm, choose the appropriate size according to the size of the product.

For actual production, the actual size of our PEEK rod may be slightly larger, and we can measure the precise size for you.

High temperature resistant plastic rod processing

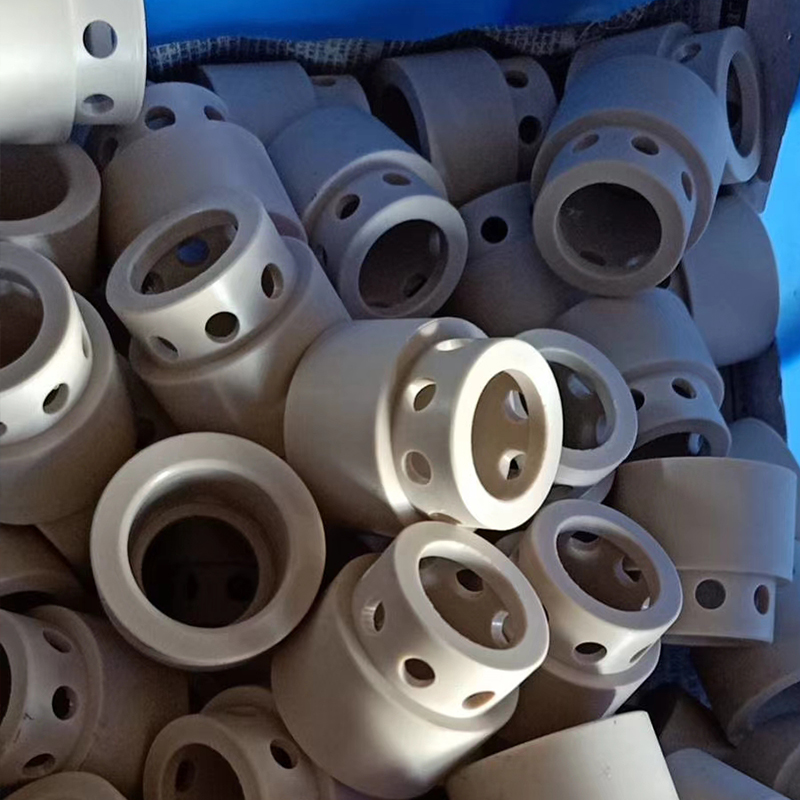

Precision machining of PEEK rods

Due to its axisymmetric geometric characteristics, cylinders are very suitable for turning machining.

The turning process can accurately control the diameter, length, and surface quality of the workpiece, and is suitable for high-precision cylindrical part machining
