PEEK round bar in stock

We update the inventory quantity and size of PEEK rods in a timely manner, ensuring complete synchronization of online and offline data through seamless integration with the inventory management system.
Whether on the company's official website or in direct communication with customers, the inventory information displayed is accurate and error free.
You can obtain the latest inventory status as soon as possible, without worrying about waiting for materials of desired specifications due to information lag.

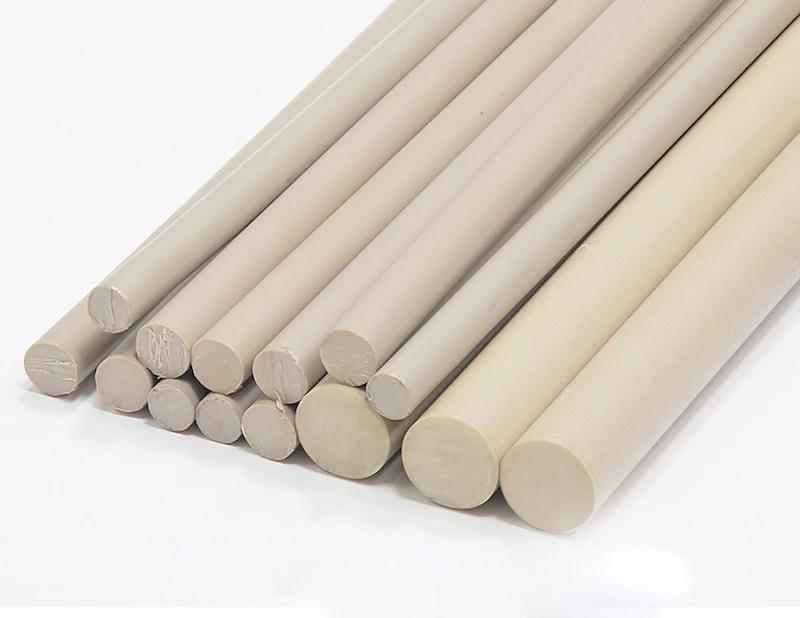

Color:	NATURE BALCK CUSTOM
Size:	6-200MM <6MM >200MM

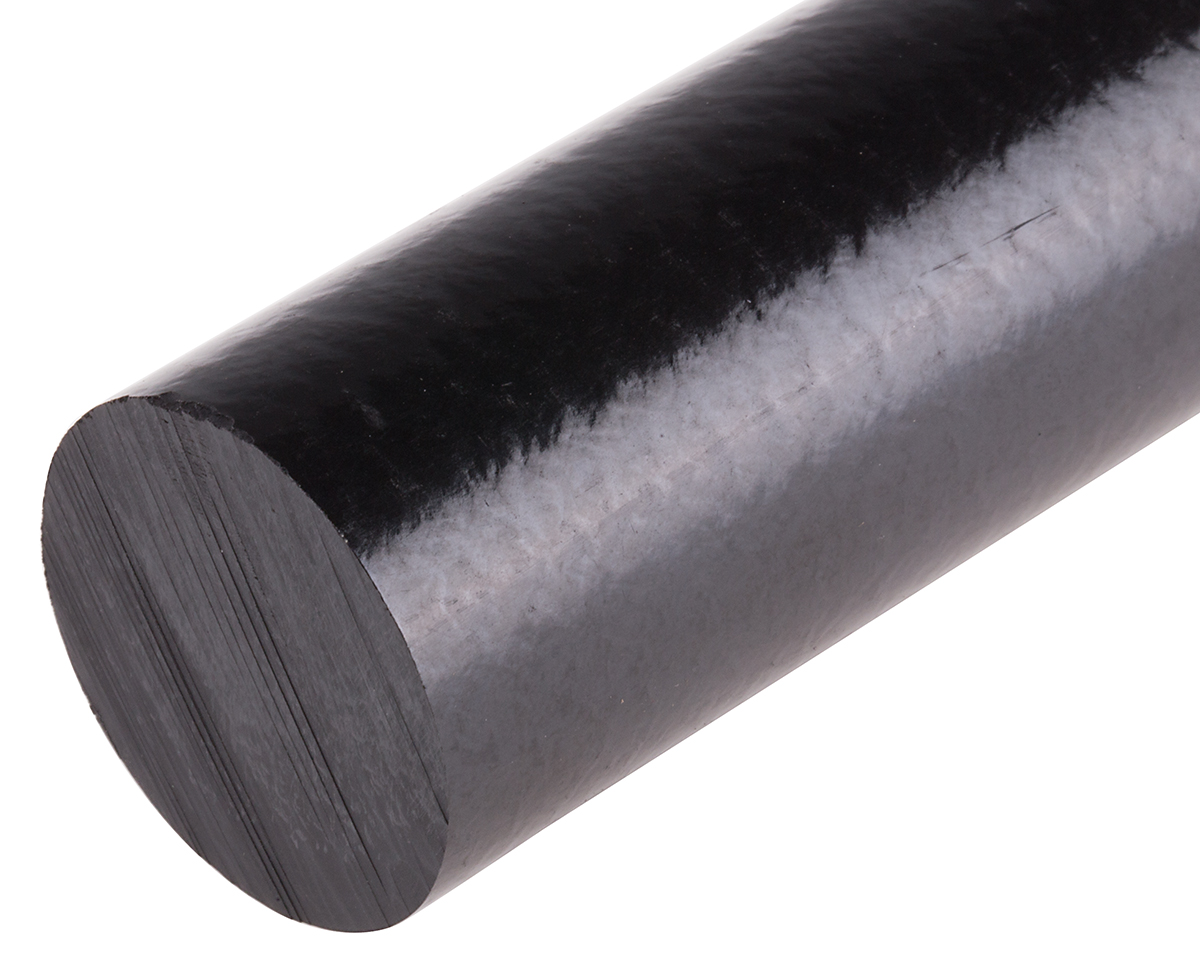

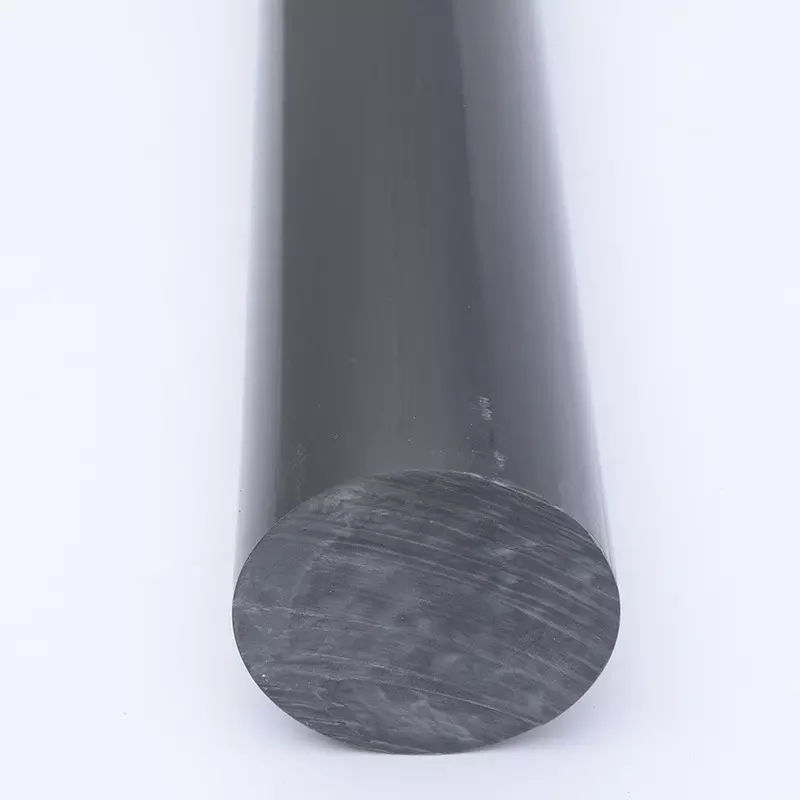

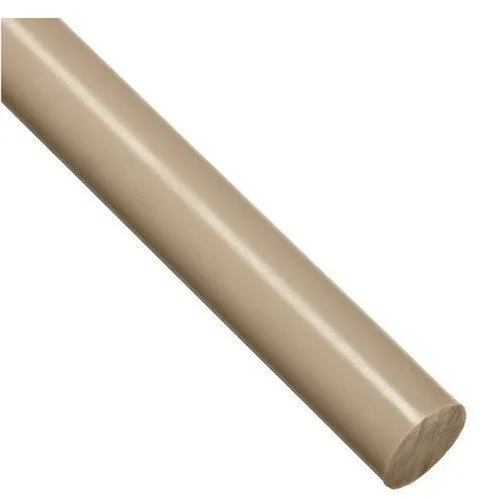

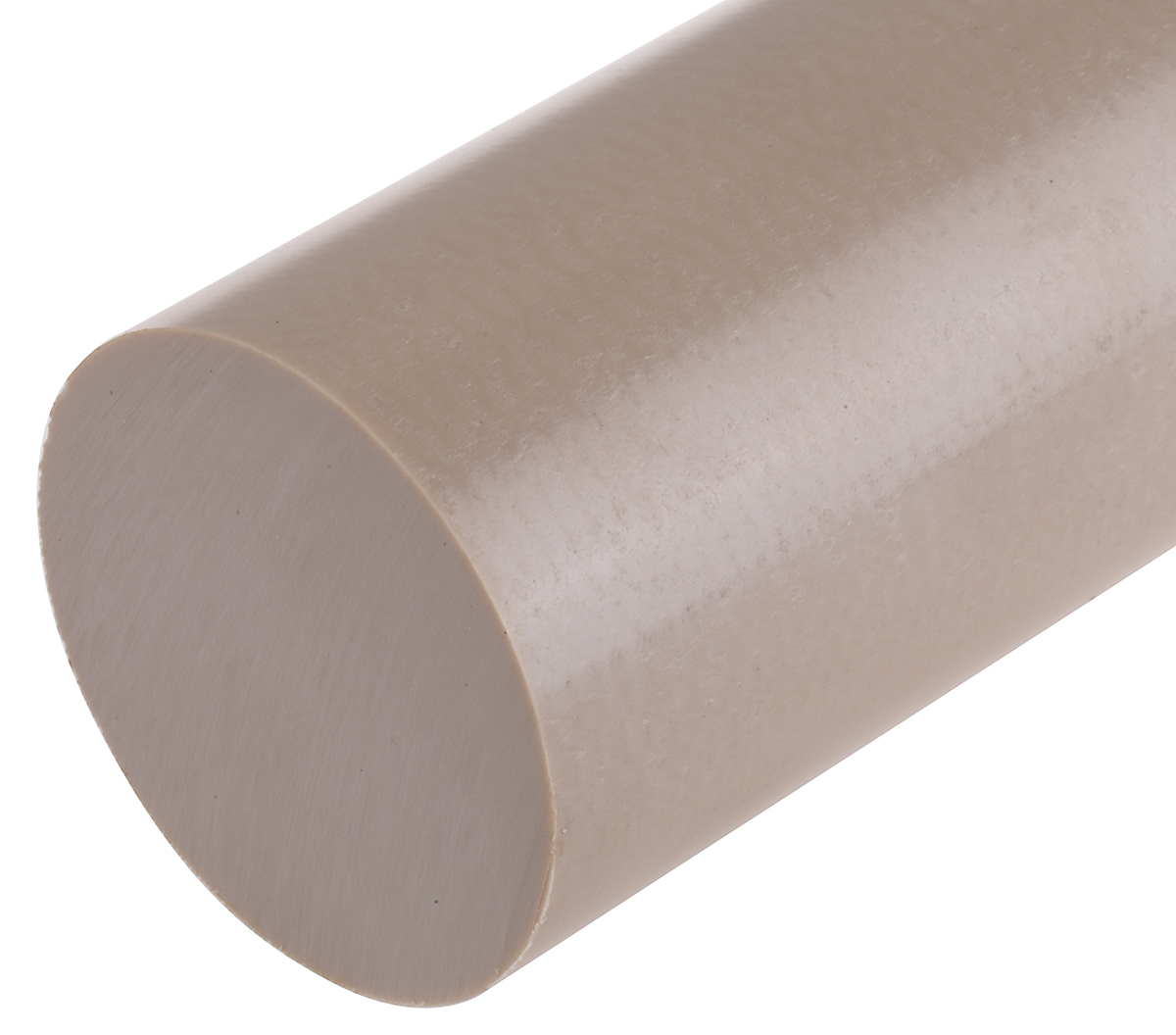

Material:	PEEK resin PEEK-GF30 PEEK-CF30 ESD-PEEK conducive-PEEK
Availability:



Inquire

Model:
PEEK990G
Brand:
PRES

Product Description

PEEK-ROD SIZE

Φ MM		PEEK-Resin		PEEK-ESD		PEEK-GF30
Φ MM	公差 MM Tolerance	密度 KG/M⊃3; Density	重量 KG/M Weight	密度 KG/M⊃3; Density	重量 KG/M Weight	密度 KG/M⊃3; Density	重量 KG/M Weight
6	+0.4 -+0.8	1.3	0.05	1.4	0.05	1.51	0.06
8	+0.5-+0.9	1.3	0.08	1.4	0.09	1.51	0.095
10	+0.4-+1.3	1.3	0.13	1.4	0.14	1.51	0.15
12	+0.3-+1	1.3	0.17	1.4	0.19	1.51	0.21
15	+0.6 -+1	1.3	0.26	1.4	0.27	1.51	0.29
16	+0.3-+1	1.3	0.3	1.4	0.32	1.51	0.35
20	+0.3-+1	1.3	0.45	1.4	0.48	1.51	0.52
22	+0.4 -+1	1.3	0.55	1.4	0.59	1.51	0.64
25	+0.2-+1	1.3	0.7	1.4	0.76	1.51	0.82
30	+0.2 -+0.8	1.3	0.99	1.4	1.07	1.51	1.14
35	+0.3-+1	1.3	1.29	1.4	1.4	1.51	1.51
40	+0.4 -+1.4	1.3	1.78	1.4	1.92	1.51	2.07
45	+0.8-+1.5	1.3	2.25	1.4	2.42	1.51	2.61
50	+0.5-+1.5	1.3	2.71	1.4	2.92	1.51	3.14
55	+0.5-+0.8	1.3	3.21	1.4	3.45	1.51	3.72
60	+0.5-+1.5	1.3	3.87	1.4	4.17	1.51	4.49
65	+2	1.3	4.67	1.4	5.03	1.51	5.43
70	+0.4 -+0.6	1.3	5.31	1.4	5.72	1.51	6.16
75	+0.3-+2.3	1.3	6.06	1.4	6.52	1.51	7.04
80	+0.6-+1.5	1.3	6.92	1.4	7.44	1.51	8.03
85	+0.5-+1.7	1.3	7.73	1.4	8.32	1.51	8.98
90	+0.5-+1.5	1.3	8.71	1.4	9.38	1.51	10.1
100	+0.5-+2	1.3	10.8	1.4	11.7	1.51	12.5
110	+0.8-+3.5	1.3	12.8
120	+0.8-+3.5	1.3	15.5
130	+0.5-+2	1.3	18.1
140	+0.5-+3	1.3	20.7
150	+1 -+4	1.3	24.1
180	+1.2 -+5	1.3	34.5
200	+1.3-+5.5	1.3	42.9

Larger and smaller sizes are also available, please feel free to contact us

Why don't produce big size PEEK rod( diameter bigger than 200mm)

In fact, we also produce peek rods with a diameter greater than 200mm, but they are not a common size, so the inventory may be limited.

And we can design extrusion molds to meet users' requirements for large-sized PEEK rods.

Difficulties in producing large-sized PEEK rod:

After adding fibers, the melt fluidity of PEEK material is significantly reduced, which makes it difficult for the material to uniformly fill various parts of large-sized molds during injection molding or extrusion, leading to insufficient filling or defects.

In large-sized products, the distribution and orientation of fibers are difficult to control uniformly, which may lead to insufficient local strength or inconsistent performance.

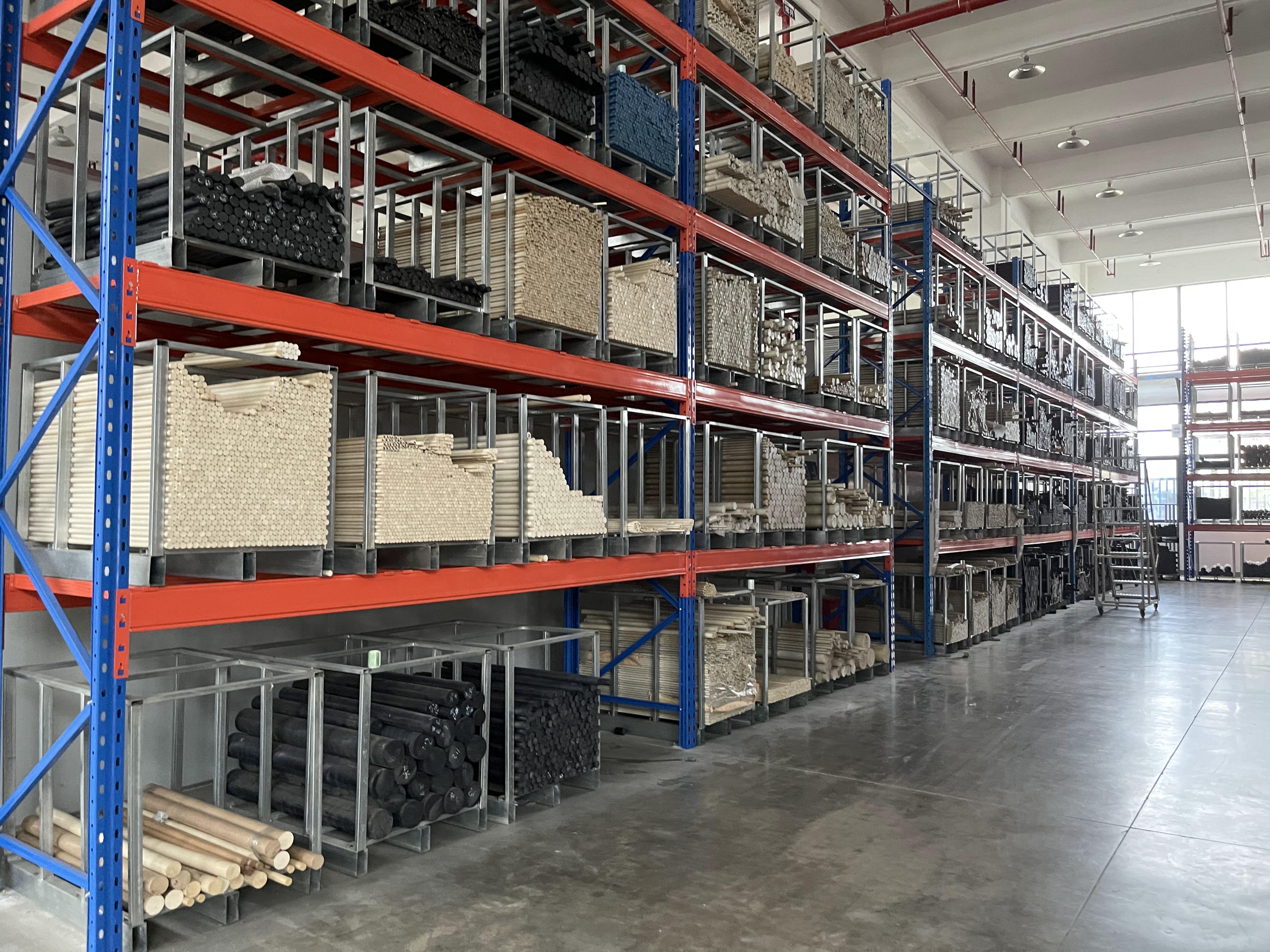

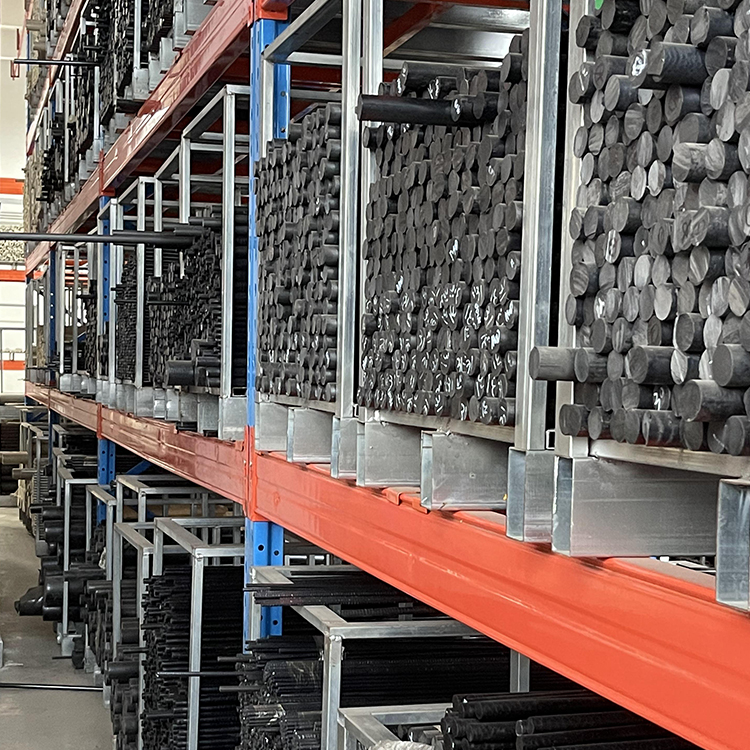

We have 5000 tons PEEK rods and sheets in stock

Our PEEK board and rod inventory is sufficient, with a complete range of models.
Whether it is high-performance specifications suitable for the aerospace industry, high-precision categories required for medical equipment manufacturing, or styles with strict requirements for dimensional stability in the electronics industry, we have it all.
Our professional team constantly monitors inventory dynamics and ensures precise tracking and efficient allocation of every batch of PEEK boards and rods through advanced inventory management systems. When you urgently need a specific model of PEEK material, we can respond quickly and complete order processing and shipping as quickly as possible, minimizing your waiting time and helping your project progress smoothly.
Moreover, our PEEK board rods undergo strict quality testing before being stored, and every detail from appearance to performance meets high standards. This not only ensures the quality stability of the products you purchase, but also eliminates any worries that may arise due to material issues.
Choosing our inventory of PEEK board rods is the perfect combination of convenience, efficiency, and quality.

PEEK sheets in stock
