Polyether ether ketone (PEEK) is one of the most widely used high-performance polymers in the poly aryl ether resin family.
As a semi-crystalline thermoplastic polymer, it has advantages such as high-temperature resistance, low-temperature resistance, wear resistance, high strength, corrosion resistance, gamma ray radiation resistance, fatigue resistance, easy forming etc. It is a high-performance polymer with the best comprehensive performance.
The molecular weight of 990G is relatively high
The melt index is about 10g/10min, with low fluidity and high viscosity. It is commonly used in injection molding and extrusion, and its toughness and strength are well combined, making it widely used.
The molecular weight of 880G is approximately 20g/10min, which is a flowability between 9900G and 660G and is a balanced choice. It is mostly suitable for injection molding and extrusion.
The molecular weight of 660G is relatively small.
with a melt index of approximately 80g/10min and high fluidity. In injection molding of thin-walled complex parts, 660G is usually chosen, which is more conducive to filling the flow channel and mold with the melt and easier to process and shape.

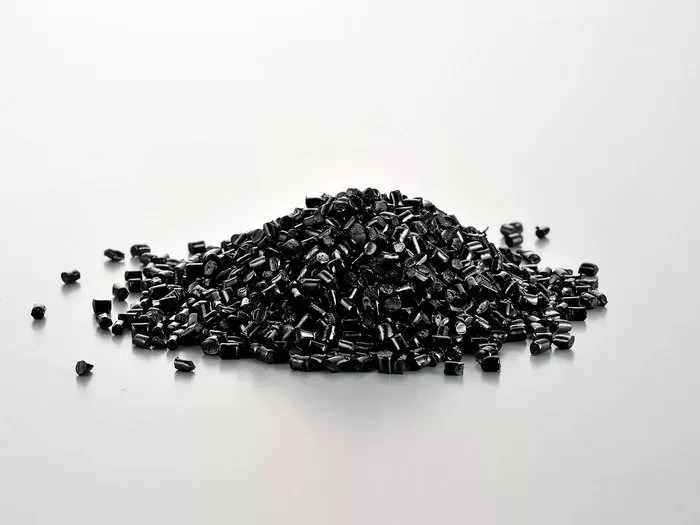

Below is our PEEK Granules Grades, contact us for a solution.
| Product | Grade | Feature | Applicable Process |
Pure PEEK Resin
| PRES-610G | High / Meduim Viscosity | Extrusion |
| PRES-660G | Standard Viscosity | Injection Moulding & Film |
| PRES-880G | Low Viscosity | Injection Moulding & Filament |
| PRES-990G | Ultra-low Viscosity | Injection Moulding & Modification |
Carbon PEEK
| PRES-660CF (20% or 30% Carbon) | Standard Viscosity | Injection Moulding & Extrusion |
| PRES-880CF (20, 30, 40% Carbon) | Low Viscosity | Injection Moulding |
Glass PEEK
| PRES-660 GF (10, 20, 30% Glass) | Standard Viscosity | Injection Moulding & Extrusion |
| PRES-880GF (20, 30% Glass) | Low Viscosity | Injection Moulding |
| PRES-990GF (20, 30% Glass) | High Strength | Injection Moulding |
| Ceramic PEEK | PRES-990CM,PRES-880CMPRES-660CM | 20% or 30% Ceramic Filled | Injection Moulding & Extrusion |
| ESD PEEK | PRES-ESD802 | Surface Resistivity 10E6~9 | Extrusion |
| ESD PEEK | PRES-ESD801 | Surface Resistivity 10E6~9 | Injection Moulding |
| PTFE PEEK | PRES-FC10 | 10% PTFE Filled | Injection Moulding |
| PTFE PEEK | PRES-FC20 | 20% PTFE Filled | Injection Moulding |
| Customized |
