PRESPEEK880CF30
PRES

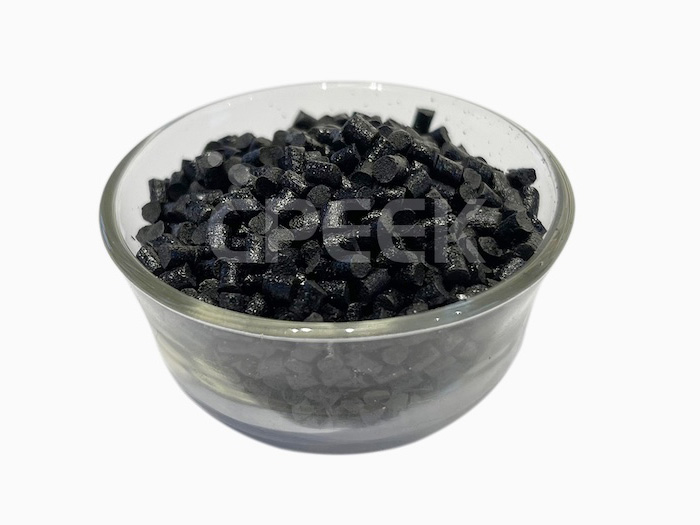

Carbon fiber reinforced PEEK (polyetheretherketone) is a highperformance composite material that combines the excellent properties of PEEK with the high strength and high modulus of carbon fibers. It has broad application prospects.
Characteristics of Carbon Fiber Reinforced PEEK
1. Hih Strength and High Modulus:
The addition of carbon fibers significantly enhances the mechanical properties of PEEK, greatly increasing its tensile strength, flexural strength, and modulus. For example, PEEK reinforced with 30% carbon fibers can double its tensile trength at room temperature and even triple it at 150°C.
2. HighTemperature Resistance:
PEEK itself can be used longterm at 250°C, and when reinforced with carbon fibers, its heat deflection temperature can exceed 300°C, making it suitable for hightemperature environments.
3. Wear Resistance and SelfLubrication:
Carbon fiber reinforced PEEK exhibits excellent wear resistance and a low friction coefficient, making it suitable for harsh conditions such as nonlubricated, lowspeed, and highload applications. Its wear resistance even surpasses that of ultrahigh molecular weight polyethylene.
4. Lightweight:
Carbon fiber reinforced PEEK has a low density, significantly reducing component weight while maintaining high strength, making it ideal for lightweight design.
5. Chemical Corrosion Resistance:
PEEK itself has excellent chemical corrosion resistance, and the addition of carbon fibers further enhances its stability in corrosive environments.
6. Fatigue Resistance and Impact Resistance:
Carbon fiber reinforced PEEK performs exceptionally well under cyclic loading, with high fatigue resistance and impact energy absorption capacity (specific energy absorption up to 180 kJ/kg).
7. Ease of Processing and Repairability:
As a thermoplastic material, carbon fiber reinforced PEEK is easy to process and can be repaired through heating in case of minor damage, reducing maintenance costs.
Main Application Areas of Carbon Fiber Reinforced PEEK
Due to its lightweight, high strength, and hightemperature resistance, carbon fiber reinforced PEEK is widely used in aircraft and spacecraft structural components. For example:
The fairings of the Boeing 757200 series are made of carbon fiber reinforced PEEK.
The engine inspection covers of the F35 fighter jet use this material, known for its strong antidelamination properties and ease of repair.
The enginesurrounding fuselage skin and C130 belly panels of the Rafale fighter also utilize this material.
| Application | Specific Application | Advantages |
|---|---|---|
| Aircraft Manufacturing | Radome | High strength and heat resistance |
| Wings and Flaps | Provides structural strength and lightweight | |
| Engine Covers | Heat resistance and fatigue resistance, suitable for engine covers | |
| Helicopters & Drones | Helicopter Components | Used in central parts and drive shafts, reduces weight and improves wear resistance |
| Drone Frames and Propellers | Used in frames, propellers, and engine parts, improves flight stability and precision | |
| Advantages | Lightweight | Lower density than traditional metals, reduces weight, improves fuel efficiency |
| High Strength & Fatigue Resistance | High tensile strength and fatigue resistance, withstands repeated stress and extreme loads | |
| Heat & Chemical Resistance | Maintains performance at high temperatures, resistant to most chemicals and radiation |
Carbon fiber reinforced PEEK excels in lightweight automotive design, replacing metal components to reduce energy consumption and improve performance. For example:
Bosch Group uses carbon fiber reinforced PEEK to replace metal in ABS functional components, reducing rotational inertia and enhancing system responsiveness.
Solvay's KetaSpire PEEK KT850 SCF 30 material is specifically designed for precision braking systems and electronic pump components in electric vehicles.
Carbon fiber reinforced PEEK is primarily used in drones for lightweight and highstrength requirements:
It is used to manufacture drone fuselage structures, propellers, and brackets, significantly reducing weight and improving flight stability.
4. Electronics and Electrical Industry:
Carbon fiber reinforced PEEK maintains excellent electrical insulation properties under high temperature, high pressure, and high humidity conditions, making it suitable for:
Vacuum suction cups, IC wafer carriers, and IC test sockets.
Carbon fiber reinforced PEEK has excellent biocompatibility and an elastic modulus close to that of human bones, making it suitable for:
Orthopedic implants, spinal fusion devices, and bone fixation plates.
Compared to traditional metal implants, it offers superior wear resistance and corrosion resistance.
6. Industrial Applications:
Carbon fiber reinforced PEEK is used to manufacture hightemperature and wearresistant industrial components, such as valve seats, sealing rings, and connectors.
carbon PEEK properties|data sheet
PRSPEEK®— 880CF30
| Test Item | Test Method | Conditions | Units | Test Data |
| Mechanical Data | ||||
| Tensile Strength | ISO 527 | Break, 23℃ | MPa | 250 |
| Tensile Elongation | ISO 527 | Break, 23℃ | % | 1.6 |
| Flexural Strength | ISO 178 | Break, 23℃ | MPa | 370 |
| Flexural Modulus | ISO 178 | 23℃ | GPa | 22 |
| Compressive Strength | ISO 604 | 23℃ | MPa | 300 |
| Charpy Impact Strength | ISO 179/1eA | Notched | kJ m-2 | 7 |
| ISO 179/1U | Unnotched | kJ m-2 | 45 | |
| Izod Impact Strength | ISO 180/A | Notched | kJ m-2 | 9 |
| ISO 180/U | Unnotched | kJ m-2 | 45 | |
| Mould Shrinkage | ISO 294-4 | Along Flow | % | 0.1 |
| Across Flow | % | 0.5 | ||
| Thermal Data | ||||
| Melting Point | ISO 11357 | - | ℃ | 343 |
| Glass Transition (Tg) | ISO 11357 | Onset | ℃ | 143 |
| Special Heat Capacity | DSC | 23℃ | kJ kg-1 ℃-1 | 1.8 |
| Coefficient of Thermal Expansion | ISO 11359 | Along flow below Tg | ppm K-1 | 5 |
| Along flow above Tg | ppm K-1 | 6 | ||
| Heat Deflection Temperature | ISO 75 | 1.8 Mpa | ℃ | 336 |
| Thermal Conductivity | ISO 22007-4 | 23℃ | W m-1 K-1 | 0.95 |
| Flow | ||||
| Melt Index | ISO 1133 | 380℃,5kg | g 10min-1 | 5 |
| Miscellaneous | ||||
| Density | ISO 1183 | Crystalline | -3 gcm | 1.4 |
| Amorphous | -3 gcm | - | ||
| Shore D Hardness | ISO 868 | 23℃ | 88 | |
| Water Absorption（3.2mm thick Tensile Bar） （by immersion） | ISO 62 | 24h, 23℃ | % | 0.04 |
| Equilibrium, 23℃ | % | 0.3 | ||
| Electrical Data | ||||
| Dielectric Strength | IEC 60243-1 | 2mm | kV mm-1 | - |
| Comparative Tracking Index | IEC 60112 | - | V | - |
| Dielectric Constant | IEC 60250 | 23℃, 1kHz | - | - |
| 23℃,50Hz | - | - | ||
| Loss Tangent | IEC 60250 | 23℃, 1MHz | - | - |
| Volume Resistivity | IEC 60093 | 23℃, 1V | Ω cm | 105 |
| 275℃ | Ω cm | - | ||
| Injection molding | ||||
| Nozzle temperature | 。C | 390 (380~410) | ||
| Zone1 Temperature | 。C | 390 (380~410) | ||
| Zone2 Temperature | 。C | 380 (370~400) | ||
| Zone3 Temperature | 。C | 370(360~390) | ||
| Melt Temperature | 。C | 390 (380~410) | ||
| Mould Temperature | 。C | 180~210 | ||
| Screw Speed | % | 50-80 | ||
| Back Pressure | Bar | 4-12 | ||
| Predrying | ||||
| Drying temperature/time | - | 150°C/3h or 120°C/ over 6h | ||
| Water absorption | % | <0.3 | ||
